Yacht Swimming Pools and Navigation: Why “Baby Pool Mode” Is a Technically Sound Solution for Roll Motion
The swimming pools installed on board yachts are now among the most prestigious and technically complex elements of a yacht wellness project. Unlike a traditional land-based swimming pool, a yacht pool must operate under unique dynamic conditions, including roll, pitch, acceleration, trim variations, and sea motion.
For this reason, the design of an onboard swimming pool cannot be evaluated solely from an aesthetic or hydraulic engineering perspective. It must also take into account the behavior of the water while the yacht is underway.
The Free Surface Effect of Water
When a swimming pool is kept completely full during navigation, the mass of water tends to move according to the yacht’s motions. This phenomenon generates internal waves, sloshing, possible water overflow, and additional stress on the overflow system and balance tank.
As the size of the pool increases, the impact of the so-called "free surface effect" also grows. A larger pool allows the water to develop wider movements, particularly along its longest side.
It is important to emphasize that this phenomenon cannot be completely eliminated through the filtration system alone, the overflow system, or the balance tank. Hydraulic systems can help manage the water, but they cannot physically eliminate the movement generated by navigation.
When Should a Yacht Pool Be Used at Full Water Level?
Under normal conditions, a yacht swimming pool should be operated at its full water level when the vessel is stationary, moored in a marina, at anchor, or in calm sea conditions.
In these situations, the pool can operate normally with all systems active:
- filtration;
- overflow system;
- heating;
- hydromassage;
- water treatment.
During navigation, especially in rough seas or when the vessel experiences significant motion, it is technically advisable to avoid using the pool at its full water level.
Two Operating Modes: Full Pool Mode and Baby Pool Mode
For proper management of an onboard swimming pool, it is useful to distinguish between two different operating configurations.
Full Pool Mode
Full Pool Mode refers to the swimming pool operating at its standard water level. This is the ideal configuration when the yacht is stationary, moored, or at anchor, allowing full use of all wellness features included in the project.
Baby Pool Mode or Navigation Mode
Baby Pool Mode, also known as Navigation Mode, operates with a reduced water level. This configuration is specifically designed for navigation or for any situation where the yacht's movements could amplify the effects of the free water surface, generating internal waves, sloshing, and water overflow.
The distinction between these two operating modes allows the swimming pool to be conceived as a technical system specifically designed for the marine environment, with different operating logics depending on the yacht’s actual conditions of use.
Features and Advantages of Baby Pool Mode for Boat Swimming Pools
In this configuration, the pool does not operate at its standard water level but with a reduced volume of water. The hydraulic system is designed to ensure proper operation even when the water level is lowered, thanks to the presence of return inlets and hydromassage systems positioned in the lower section of the pool.
This solution allows you to:
- reduce the effects of the free surface phenomenon;
- limit water movement;
- improve pool control during navigation;
- maintain the main functions of the system operational.
Baby Pool Mode should not be interpreted as simply lowering the water level at random. It is a true design choice that must be incorporated from the earliest stages of swimming pool and hydraulic system development.
Centro Italia Yachting® Experience: Testing and Development Over Time
Over the years, we have analyzed and tested numerous solutions with the goal of reducing water movement inside onboard swimming pools.
The solutions evaluated included:
- modifications to pool geometry;
- internal containment systems;
- overflow system improvements;
- submerged anti-sloshing elements;
- different hydraulic configurations.
Many of these solutions, however, did not provide fully satisfactory results when the pool remained completely full during navigation. In several cases, such interventions also risk compromising the pool's aesthetics, ease of use, or the clean design lines that are particularly important in the luxury yacht sector.
For this reason, our design philosophy follows a different principle: rather than attempting to forcibly counteract sea movement, we adapt the swimming pool’s operating conditions to navigation requirements by lowering the water level.
Why Are Low-Level Return Inlets Essential in Yacht Pools?
In traditional swimming pools, return inlets are generally positioned according to the standard operating water level. In a yacht swimming pool designed to operate efficiently even with a reduced water level, it is essential to provide properly distributed and correctly sized low-level return inlets.
These allow the hydraulic system to continue functioning when the water level is lowered, ensuring proper circulation and enabling use of the swimming pool even in Navigation Mode.
The positioning of the return inlets, hydraulic circuit configuration, water level management, and operational logic require careful engineering, as a marine swimming pool has significantly different requirements compared to a residential pool.
Contact Centro Italia Yachting® for More Information
A yacht swimming pool must be beautiful, functional, and technically sound. Above all, it must be designed with the real operating environment in mind.
The experience we have gained over the years has led us to prioritize reliable, practical, and easy-to-manage solutions. Among these, Baby Pool Mode represents one of the most effective ways to reduce water movement during navigation without compromising the pool’s design and elegance.
Centro Italia Yachting designs and builds custom swimming pools for yachts, carefully studying every technical aspect of the system: structure, hydraulic engineering, overflow systems, balance tanks, filtration, hydromassage, water treatment, and dedicated navigation operating modes. Each swimming pool is developed according to the yacht’s characteristics, available onboard space, and actual operating conditions.
To request a quotation for our custom swimming pools for yachts and vessels, or for any technical information, please do not hesitate to contact us through the dedicated contact page.
If, on the other hand, you would like to see real examples of completed projects, please visit our Client Portfolio page.

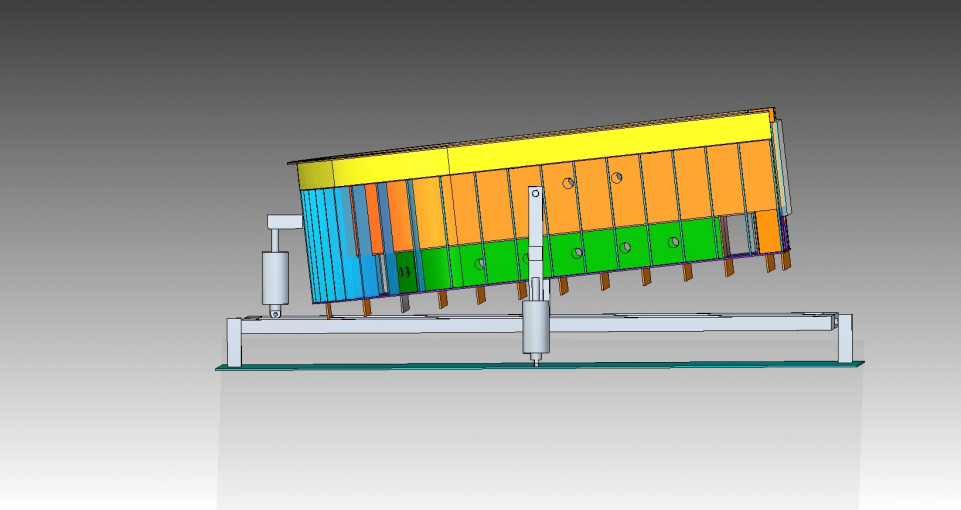

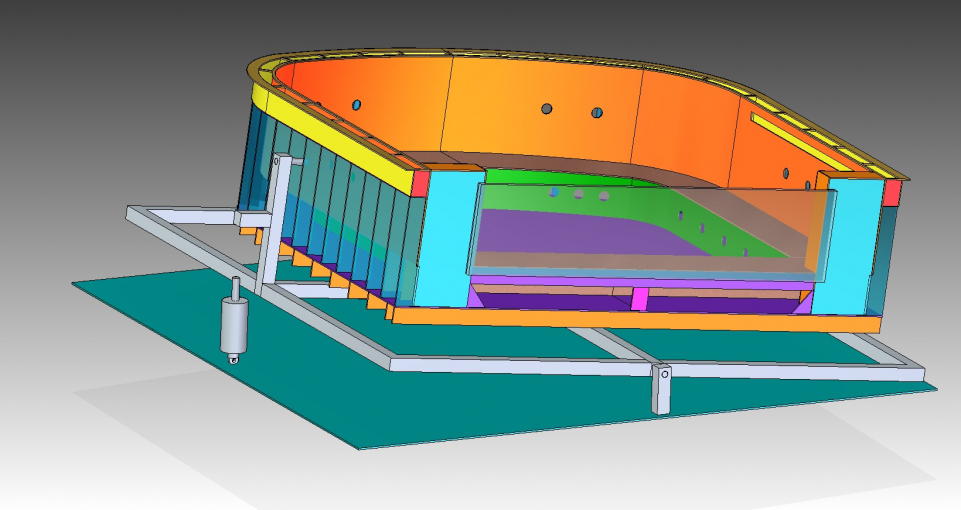

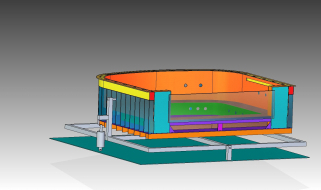

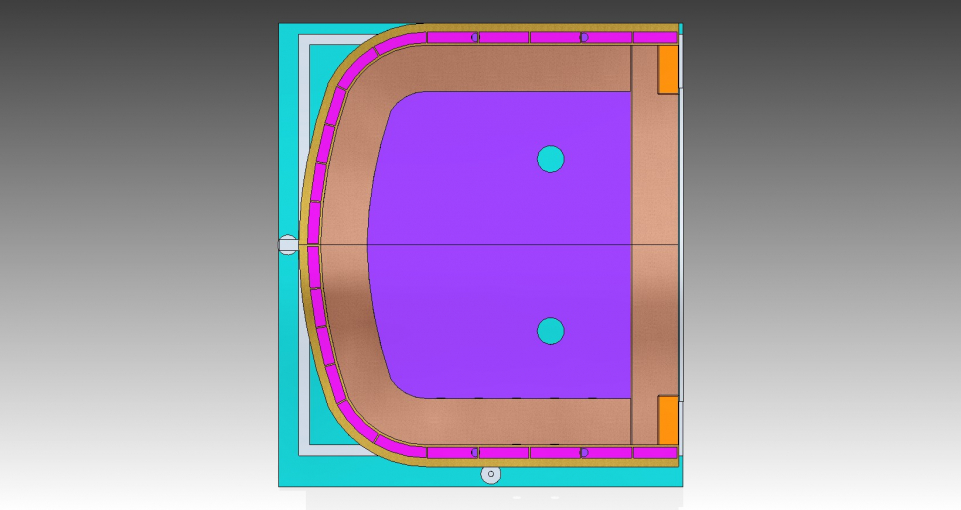

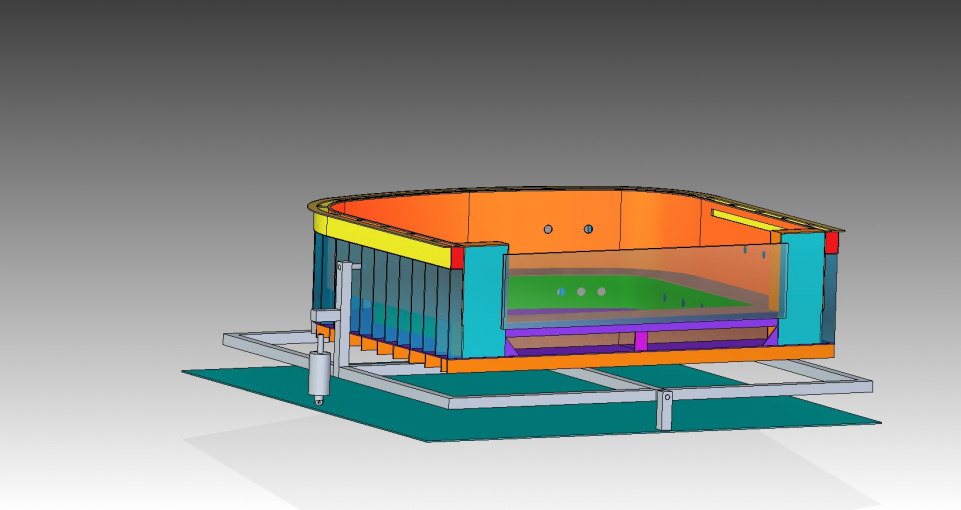

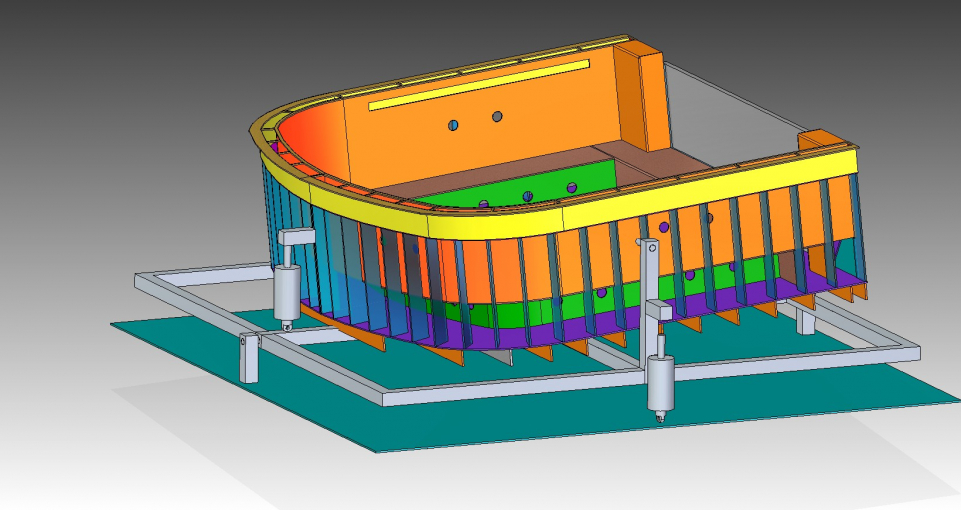

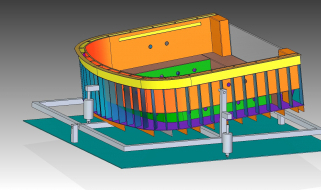

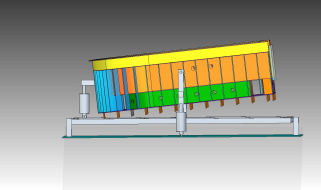

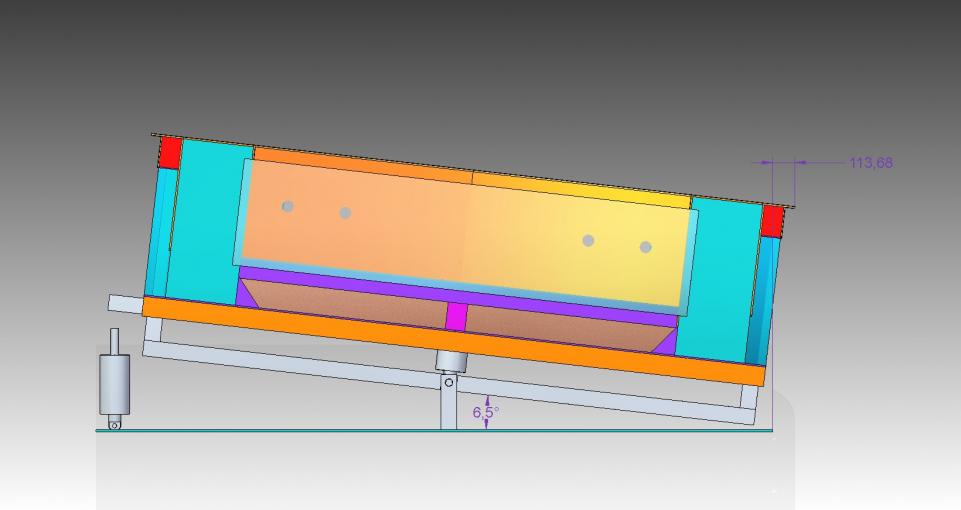

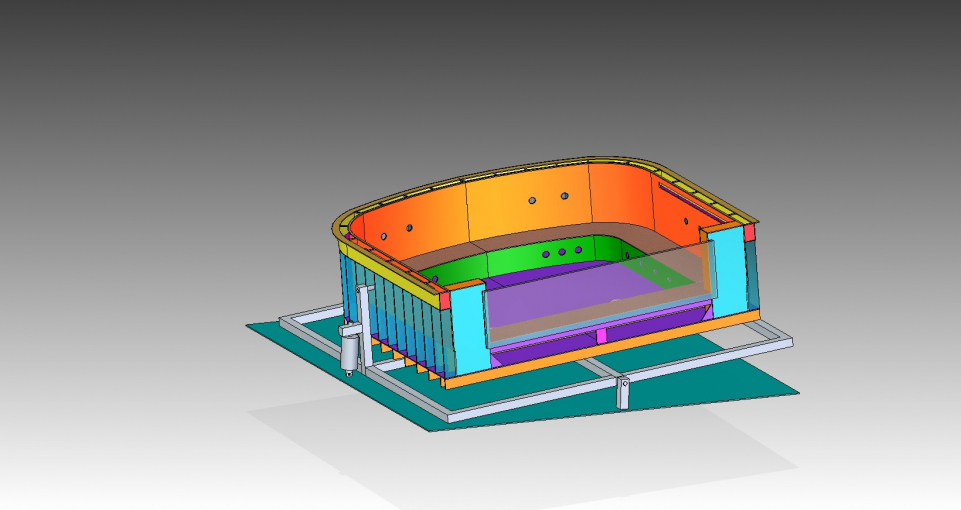

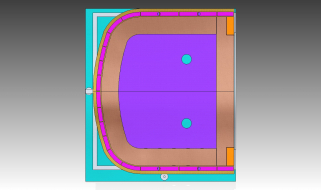

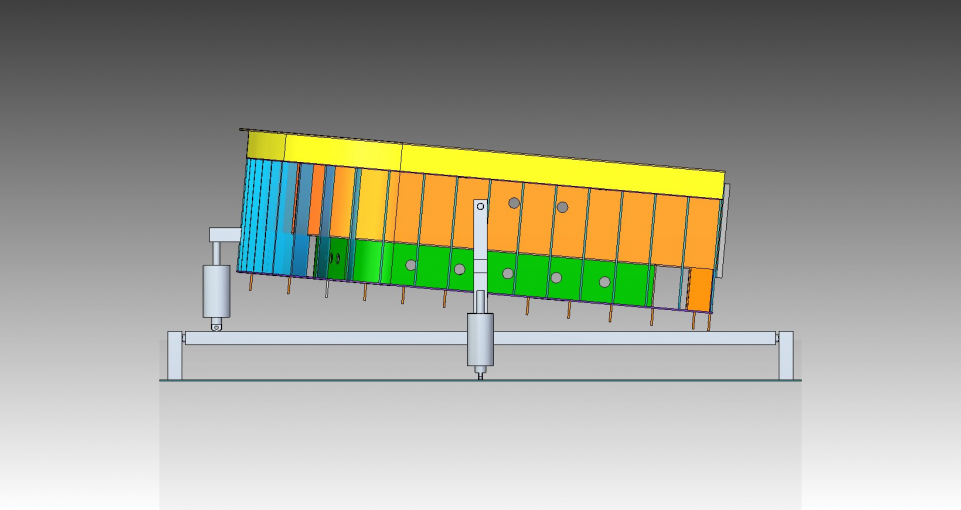

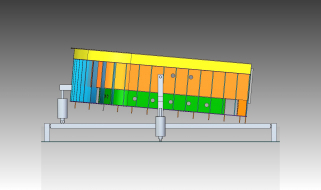

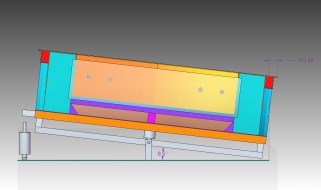

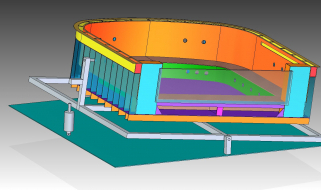

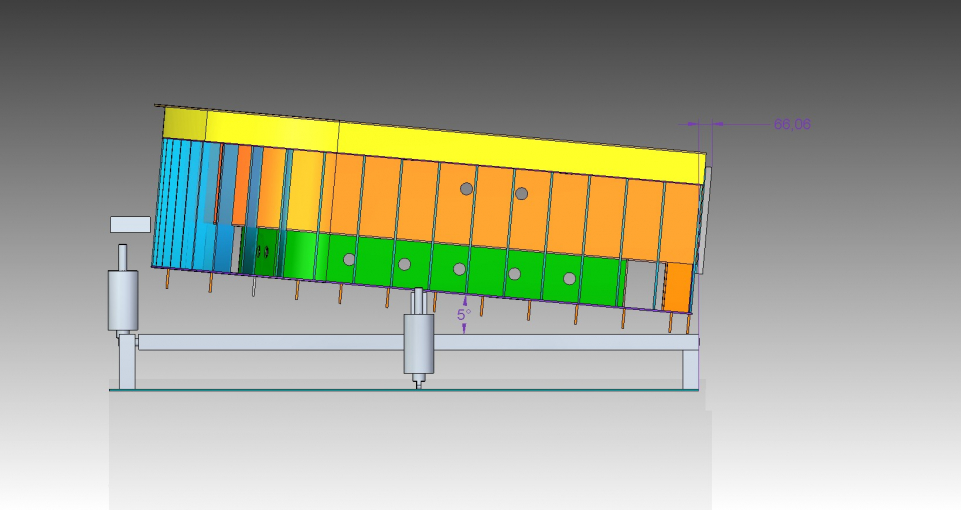

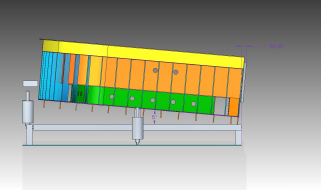

Baby Pool Mode Systems Gallery
